上海富泰閥門有限公司是國內生產安全閥的主導廠，廠內建有遠東一流的安全閥測試中心，國產第一臺安全閥就是我廠誕生的。二十多年來，富泰牌安全閥的品種已發展到百余個系列，千余個規格，產品廣泛應用于鍋爐、石化、電站以及國防工業。并為國內第一座核電站秦山核電站研制成功了第一批核級安全閥。 富泰牌安全閥主要產品系列分別榮獲機械部信得過產品，上海市優質產品稱號，國家銀質獎。富泰牌安全閥是受壓設備、容器或管路上的最佳超壓保護裝置。當設備壓力升高達到預定值時，安全閥自動開啟，繼而全量排放，防止設備壓力繼續升高；當壓力降低到規定值時，安全閥及時自動關閉。富泰牌安全閥是選用者為保護工程設備安全運行的最理想的，最科學的明智選擇。

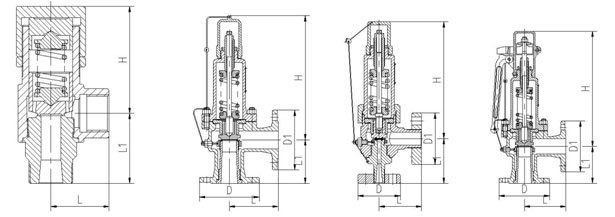

主要連接尺寸：
|
型 號 |
公稱 |
主要結構尺寸 |
閥體 |
簡要性能 |
備注 |
||||||
|
通徑 |
壓力 |
D |
D1 |
L |
L1 |
H |
適用溫度℃ |
適用介質 |
|||
|
A41H-16C |
65 |
1.6 |
|
|
|
|
|
鑄鋼 |
≤300 |
油品、空氣、水 |
|
|
" |
80 |
" |
195 |
195 |
160 |
135 |
385 |
" |
" |
" |
|
|
" |
100 |
" |
215 |
215 |
170 |
160 |
525 |
" |
" |
" |
|
|
" |
150 |
" |
285 |
285 |
250 |
210 |
720 |
" |
" |
" |
|
|
" |
200 |
" |
340 |
340 |
290 |
310 |
777 |
" |
" |
" |
|
|
A41H-125 |
25 |
2.5 |
|
|
|
|
|
鑄鋼 |
≤300 |
油品、空氣、水 |
|
|
" |
32 |
" |
135 |
135 |
115 |
100 |
266 |
" |
" |
" |
|
|
" |
40 |
" |
145 |
145 |
120 |
105 |
318 |
" |
" |
" |
|
|
" |
50 |
" |
160 |
160 |
130 |
115 |
350 |
" |
" |
" |
|
|
" |
65 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
80 |
" |
195 |
195 |
160 |
135 |
570 |
" |
" |
" |
|
|
" |
100 |
" |
230 |
215 |
170 |
160 |
580 |
" |
" |
" |
|
|
A41H-25 |
150 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
200 |
" |
|
|
|
|
|
" |
" |
" |
|
|
A41H-40 |
25 |
4.0 |
|
|
|
|
|
鑄鋼 |
≤300 |
油品、空氣、水 |
|
|
" |
32 |
" |
135 |
135 |
115 |
100 |
266 |
" |
" |
" |
|
|
" |
40 |
" |
145 |
145 |
120 |
105 |
318 |
" |
" |
" |
|
|
" |
50 |
" |
160 |
160 |
130 |
115 |
350 |
" |
" |
" |
|
|
" |
65 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
80 |
" |
195 |
195 |
160 |
135 |
570 |
" |
" |
" |
|
|
" |
100 |
" |
235 |
220 |
170 |
160 |
585 |
" |
" |
" |
|
|
" |
150 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
200 |
" |
|
|
|
|
|
" |
" |
" |
|
|
SA41H-16C |
25 |
1.6 |
115 |
45 |
55 |
86 |
200 |
鑄鋼 |
≤300 |
空氣、水等 |
出口：G1" |
|
SA41H-25 |
25 |
2.5 |
115 |
45 |
55 |
86 |
200 |
" |
" |
" |
" |
|
SA41H-40 |
25 |
4.0 |
115 |
45 |
55 |
86 |
200 |
" |
" |
" |
" |
|
SA41H-64 |
25 |
6.4 |
115 |
45 |
55 |
86 |
200 |
" |
" |
" |
" |
|
SA41Y-160 |
15 |
16.0 |
95 |
95 |
95 |
100 |
238 |
鍛鋼 |
≤200 |
油品、氮?dú)錃?/p> |
|
|
" |
20 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
25 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
32 |
" |
110 |
165 |
130 |
135 |
310 |
" |
" |
" |
do12、14、16 |
|
SA41Y-320 |
15 |
32.0 |
105 |
115 |
95 |
100 |
238 |
" |
" |
" |
|
|
" |
20 |
" |
110 |
115 |
95 |
100 |
238 |
" |
" |
" |
|
|
" |
25 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
32 |
" |
135 |
165 |
130 |
135 |
334 |
" |
" |
" |
do12、14、16 |
|
SA41Y-500 |
15 |
50.0 |
105 |
115 |
95 |
100 |
222 |
" |
" |
" |
|
|
" |
20 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
25 |
" |
|
|
|
|
|
" |
" |
" |
|
|
型 號 |
公稱 |
主要結構尺寸 |
閥體 材料 |
簡要性能 |
備注 |
||||||
|
通徑 DN(mm) |
壓力PN(Mpa) |
D |
D1 |
L |
L1 |
H |
適用溫度℃ |
適用介質 |
|||
|
A47H-16C |
40 |
1.6 |
150 |
150 |
120 |
110 |
360 |
鑄鋼 |
≤350 |
蒸氣、水、空氣 |
|
|
" |
50 |
" |
160 |
160 |
135 |
120 |
380 |
" |
" |
" |
|
|
" |
65 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
80 |
" |
200 |
200 |
170 |
135 |
405 |
" |
" |
" |
|
|
" |
100 |
" |
215 |
215 |
170 |
160 |
580 |
" |
" |
" |
|
|
" |
150 |
" |
285 |
285 |
250 |
210 |
729 |
" |
" |
" |
|
|
" |
200 |
" |
340 |
340 |
290 |
310 |
834 |
" |
" |
" |
|
|
A47H-25 |
40 |
2.5 |
150 |
150 |
120 |
110 |
360 |
" |
" |
" |
|
|
" |
50 |
" |
160 |
160 |
130 |
115 |
380 |
" |
" |
" |
|
|
" |
65 |
" |
|
|
|
|
|
" |
" |
" |
|
|
|
80 |
" |
195 |
195 |
160 |
135 |
620 |
" |
" |
" |
|
|
|
100 |
" |
230 |
215 |
170 |
160 |
582 |
" |
" |
" |
|
|
A47H-40 |
40 |
4 |
150 |
150 |
120 |
110 |
360 |
" |
" |
" |
|
|
|
50 |
" |
160 |
160 |
130 |
115 |
370 |
" |
" |
" |
|
|
|
65 |
" |
|
|
|
|
|
" |
" |
" |
|
|
|
80 |
" |
195 |
195 |
160 |
135 |
620 |
" |
" |
" |
|
|
|
100 |
" |
235 |
220 |
170 |
160 |
650 |
" |
" |
" |
|
